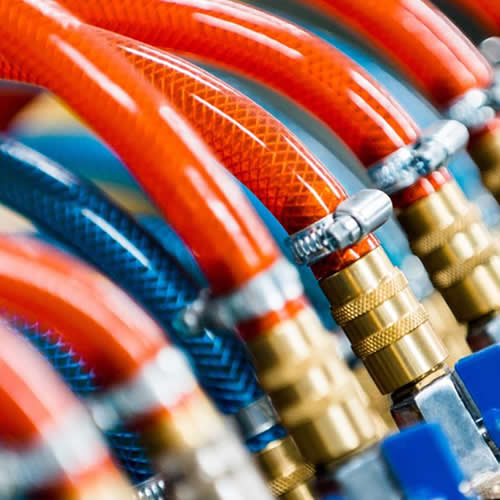

Application: Industrial hoses, pipes, heavy power transmission belts, tires, rubber couplings, airsprings, fabrics used for other mechanical rubber goods. |
|
n Treated processing: adhesive activated, different colors, plied for thick, twisting or dipped in RFL.
|
|
n Soft/Stiff cords are twisted yarns made of raw yarns polyamide, polyester, aramid and also glass or others.
|
|
n The raw yarns are plied or twisted and dipped in water-based substrates to achieve adhesion to various rubber mixtures.
|
|
n Treated yarns are usually based on high-performance materials and/or on highly specialized production processes.
|
|
n Special requirements such as specification/package can be negotiated.
|
|
Technical information of treated yarns |
||||||
|
Materials |
Dtex |
Tensile |
Weight kgs/bobbin |
Treated |
Package |
Application |
|
Polyester |
1100 - 27500 |
80 - 1600 |
6 - 12 |
AA, Twist, Plied, Color, RFL dip |
Cartons / Wrapping film with pallets |
Industrial Hoses,Pipes,Heavy Power Transmission Belts ... |
|
Polyamid |
940 - 4500 |
80 - 300 |
6 - 12 |
AA, Twist, Plied, Color, RFL dip |
Cartons / Wrapping film with pallets |
Industrial Hoses,Pipes,Heavy Power Transmission Belts ... |
Aramid |
1100 - 25000 |
180 - 4500 |
6 - 12 |
AA, Twist, Plied, Color, RFL dip |
Cartons / Wrapping film with pallets |
Industrial Hoses,Pipes,Heavy Power Transmission Belts ... |
Glass |
3300 - 14300 |
250 - 1000 |
6 - 12 |
AA, Twist, Plied, Color, RFL dip |
Cartons / Wrapping film with pallets |
Industrial Hoses,Pipes,Heavy Power Transmission Belts ... |
|

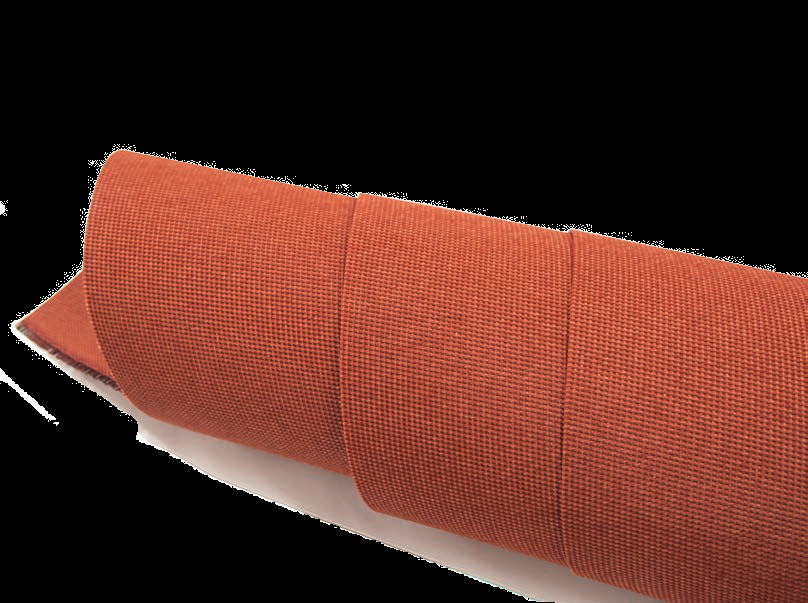

Application: Rubber or PVC belt production for food, mining, agriculture and other fields. |
|
n Our fabrics are made with high tenacity industrial PET / PA yarns. All range of EP – EE – NN fabrics for heavy-duty rubber belt and light-duty PVC belt.
|
|
n We produce fabrics in a wide range of weights 250 – 1800 g/m2.
|
|
n We produce greige fabrics up to 3800 mm - 149 inches width.
|
|
n We produce dipped fabrics up to 2200 mm - 87 inches width.
|
|
n Fabric weave structure: Twill, Broken Twill, Plain and Oxford.
|
|
n We use a variety of fibers: polyester, polyamide, aramid, fiber glass, basalt and cotton.
|
|
n We can treat our fabrics : Impregnation for SBR,NBR, NR, CR and other upon request flame retardant, greige fabric heat-set.
|
|

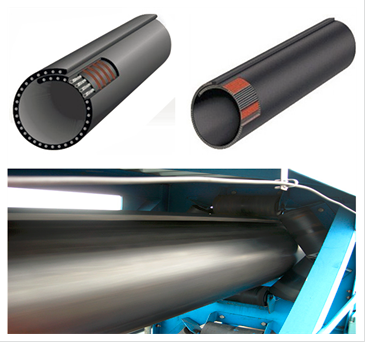

n We can produce special fabric such as Heat-resistance, cross-rigid, SW, PE fabrics for pipe tube belts, upon your requirements.
|
|
Technical information of belting fabric |
||||||||
|
Type |
Item |
Weight g/sqm* |
Warp yarn |
Weft yarn |
Structure |
Width mm |
Finishing |
Application |
|
EP |
80 - 630 |
250 - 1800 |
Polyester HT AA* |
Nylon66, (polyamide) |
Twill, Broken Twill, Plain and Oxford |
450 - 2200 |
RFL dipping (Brown & Black), Heat-setting |
Mining, industry and agriculture |
|
EE |
80 - 500 |
260 - 1500 |
Polyester HT AA* |
Polyester HT AA* |
Twill, Broken Twill, Plain and Oxford |
450 - 2200 |
RFL dipping (Brown & Black), Heat-setting |
Mining, industry and agriculture |
|
NN |
80 - 630 |
260 - 1600 |
Nylon 6 (polyamide) |
Nylon 6 (polyamide) |
Twill, Broken Twill, Plain and Oxford |
450 - 2200 |
RFL dipping (Brown & Black), Heat-setting |
Mining, industry and agriculture |
|
SW |
400 - 3150 |
1500 - 4420 |
Polyester HT AA* / Aramid |
Polyester, Nylon66, (polyamide) |
Straight Warp |
800 - 1900 |
RFL dipping (Brown & Black) |
Mining, industry and agriculture |
|
XE |
100 - 200 |
260 - 1500 |
Mult-filament HT yarn |
Mono-filament HT yarn |
Plain |
980 - 1500 |
RFL dipping (Brown & Black) |
Mining, industry and agriculture |
|
Solid Woven |
630 - 1250 |
2500 - 5800 |
Polyester HT yarn / Cotton |
Polyester HT yarn / Cotton |
Twill, Broken Twill, Plain and Oxford |
1200 - 1400 |
/ |
Mining |
|
*Polyester high tenacity adhesive activated |
||||||||
|

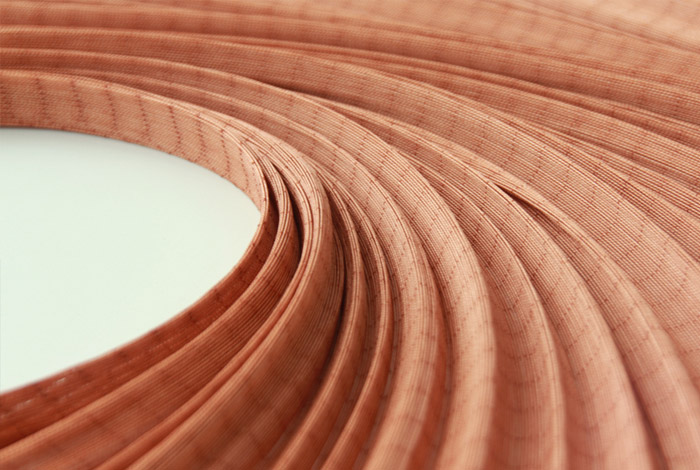

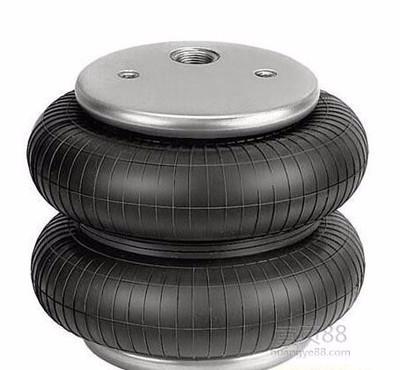

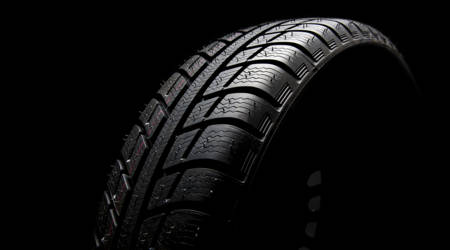

Application: Rubber tyre, hose and airspring |
|
n Our fabrics are made with Nylon - Polyamide 66; HMLS polyester yarn.
|
|
n We supply nylon66 cord fabric range from 840D/2 (930dtex/2) to 1890D/2 (2100dtex/2) and polyester cord fabric range from 1000D/2 (1100dtex/2) to 2000D (2200dtex/2).
|
|
n We can supply cord fabric upon your special requirements.
|
|

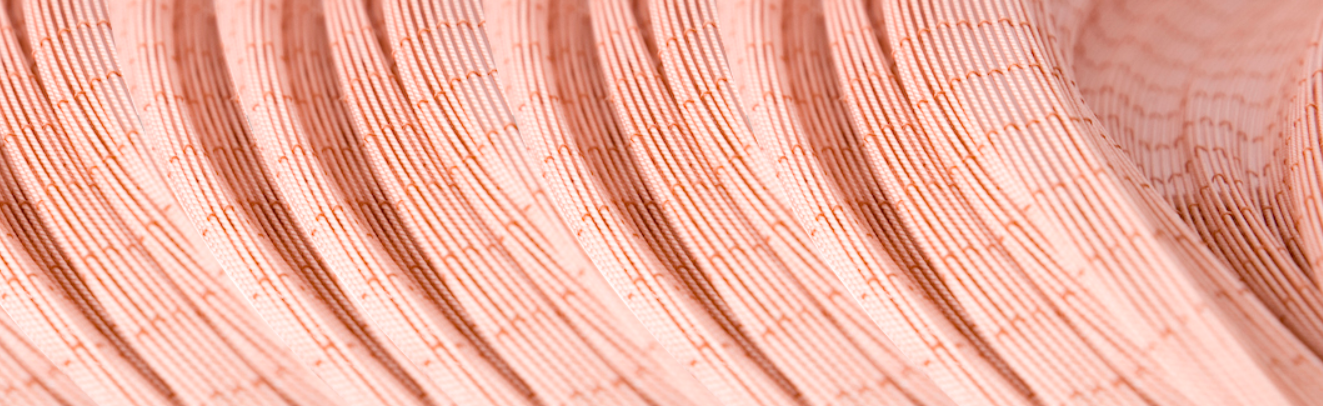

Technical information of cord fabric |
|||||||
|
Type |
Items Denier |
Warp density ends/10cm |
Weft density ends/10cm |
Width mm |
H-dhesion kgf/cm |
Finishing |
Application |
|
Nylon - Polyamide 66 |
840/2, 1260/2,1680/2,1890/2 |
60 - 100 |
8 - 10 |
1300 - 1500 |
>11 |
RFL dipping |
Tyres, hoses and airspring |
|
HMLS polyester |
1000/2, 1300/2,1500/2,2000/2 |
70 - 120 |
8 - 10 |
1300 - 1500 |
>13 |
RFL dipping |
Tyres, hoses and airspring |
|

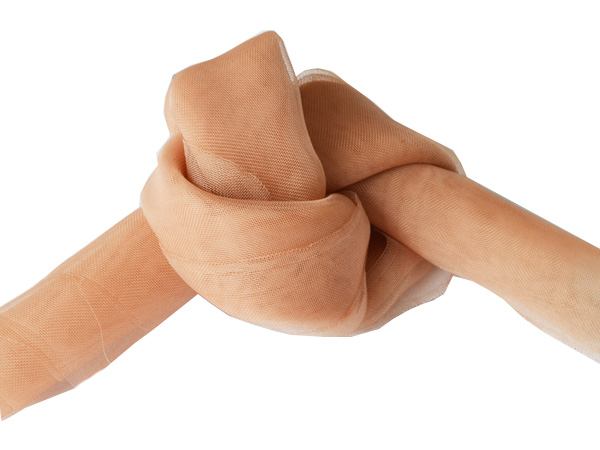

***Chafer Fabric*** |
|
Application: tyres, hoses and Diaphragms. |
|
n Our fabrics are made with Nylon - Polyamide 6 or 66; Multifilament or monofilament.
|
|
n We produce fabrics in a wide range of weights 100 – 350 g/m2.
|
|
n We produce dipped fabrics up to 1900 mm - 75 inches width.
|
|
n We produce greige fabrics up to 3800 mm -149 inches width.
|
|
|
|
***Liners & Calender Guide Fabric*** |
|
Application: Fabrics for rubber calender process |
|
n Our fabrics are made with flat / twisted polypropylene multifilament in warp and also monofilament in weft.
|
|
n We produce fabrics in a wide range of weights 150 – 500 g/m2.
|
|
n We produce greige fabrics up to 3800 mm -149 inches width.
|
|
n Fabric weave type: Twill, Plain and Oxford.
|
|
n We use a variety of fibers: polypropylene, polyester, polyamide and cotton.
|
|
|
|
***Retreading Cord Fabrics*** |
|
Application: Fabrics used for breaker, rubber bowl, mesh separating / splicing |
|
n This fabric is made with dipped cord.
|
|
n We weave fabrics up to 1900 mm - 75 inches width.
|
|
n Fabric weave type: Twill, Plain.
|
|
Technical information of mechanical reinforcement fabric |
||||
|
Application |
Weight g/sqm* |
Thickness mm |
Width mm |
Finishing |
|
Chafer |
100 - 350 |
0.40 - 0.80 |
< 1900 |
RFL dipping (Brown & Black), Heat-setting |
|
Liner |
150 - 500 |
0.25 - 1.25 |
< 3800 |
Heat-setting |
|
Retreating cord fabric |
100 - 920 |
0.30 - 1.10 |
< 1900 |
/ |
